Industrial recycling solutions
Paper-Plastic Separation Production Line
Recover usable paper pulp and polyethylene (PE) from suitable PE-coated paper and paper-plastic composite waste.
Hongxin provides integrated separation equipment and production-line planning for factories and recyclers handling laminated paper and plastic materials. The appropriate equipment configuration depends on your feedstock and required processing capacity.
01 / Input materials

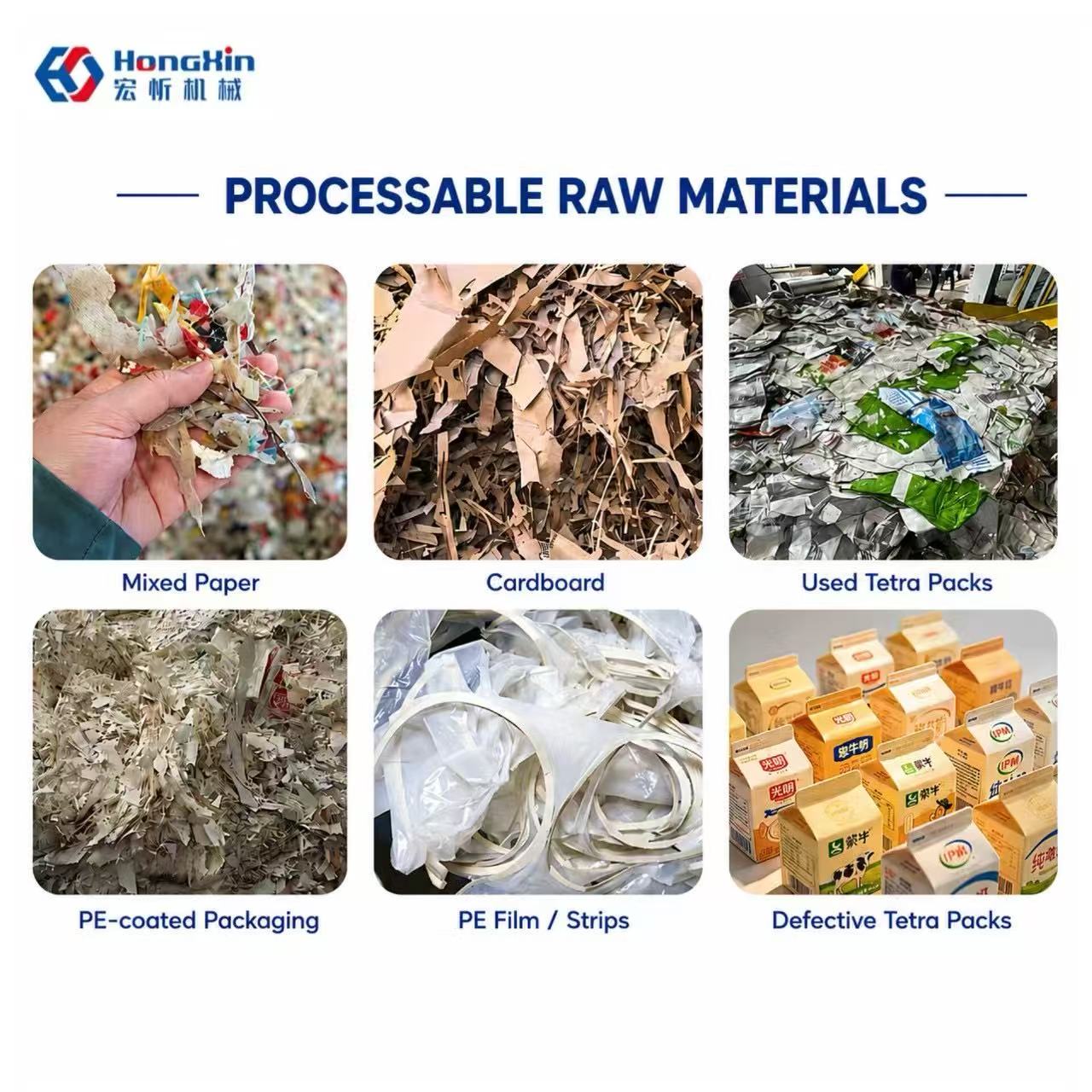

What Materials Can Be Processed?
The line is designed for suitable paper-plastic composites. Share your material photos or samples so our team can assess the right configuration.
Typical feedstocks
PE-coated paper and packaging
Paper-plastic laminated production scraps
Waste label rolls with suitable paper/PE layers
Composite packaging requiring material evaluation
02 / Process design
From Composite Waste to Recovered Materials
A clear overview of the main processing stages. Individual equipment and handling steps are selected for the customer's material.
Material Preparation
Inspect and prepare incoming composite waste for feeding.
Feeding
Transfer the material into the separation equipment.
Separation
Release paper fibres from the bonded plastic layer.
Material Recovery
Collect paper pulp and PE for suitable downstream handling.
Integrated configuration
Designed Around Your Feedstock
A project may include feeding, paper-plastic separation, pulp handling, plastic handling and, when required, additional downstream processing. The illustration shows an integrated arrangement rather than a universal fixed machine specification.
Discuss Your Material03 / Recovered outputs

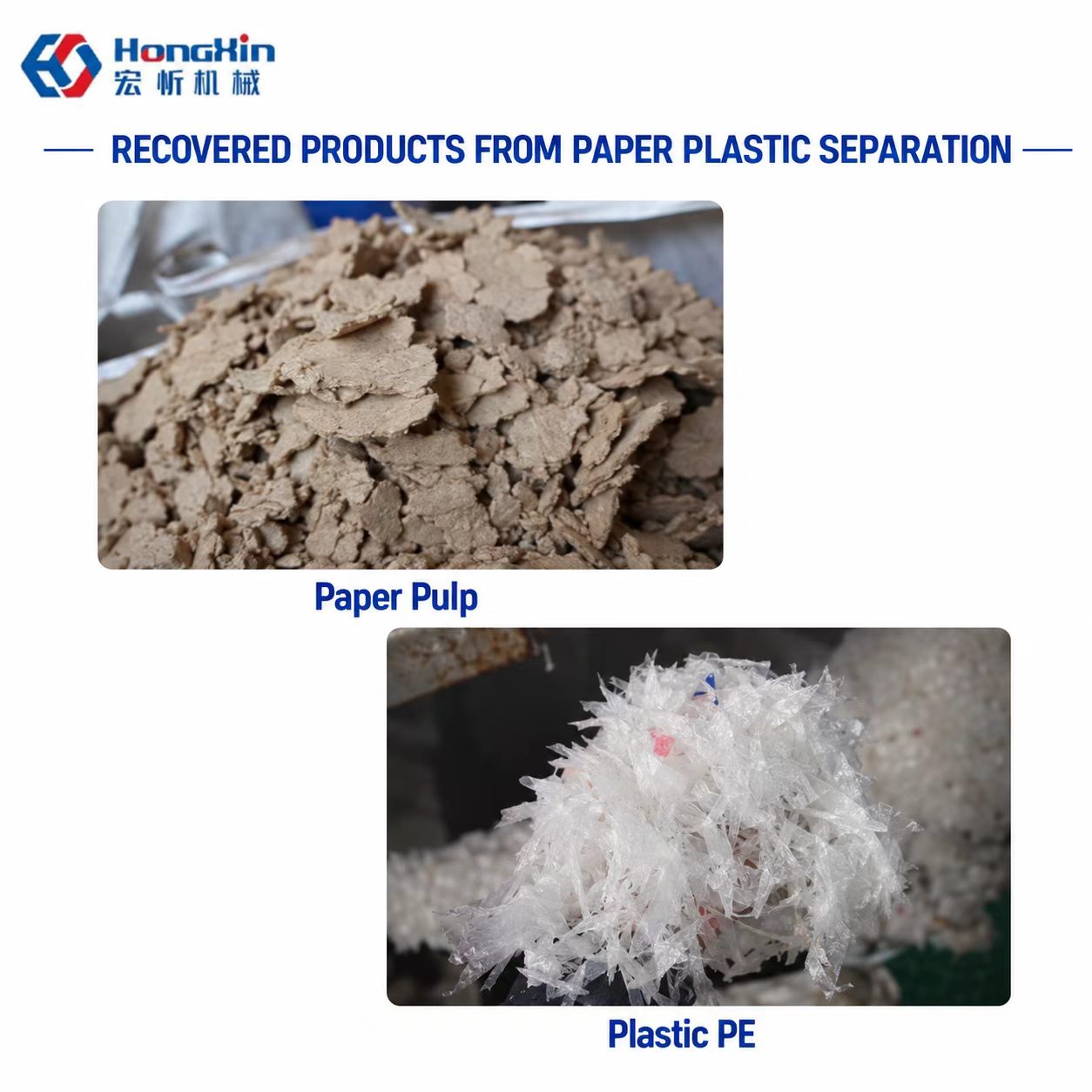

Two Valuable Recovered Material Streams
For suitable paper-and-PE laminates, the separation process recovers paper pulp and polyethylene plastic as distinct streams.
Recovered Paper Pulp
Paper fibre is recovered for further dewatering and suitable paper-making or moulded-fibre applications, depending on its quality.
Separated PE Plastic
Recovered PE can undergo additional cleaning, drying and other downstream plastic processing as required.
04 / Production line

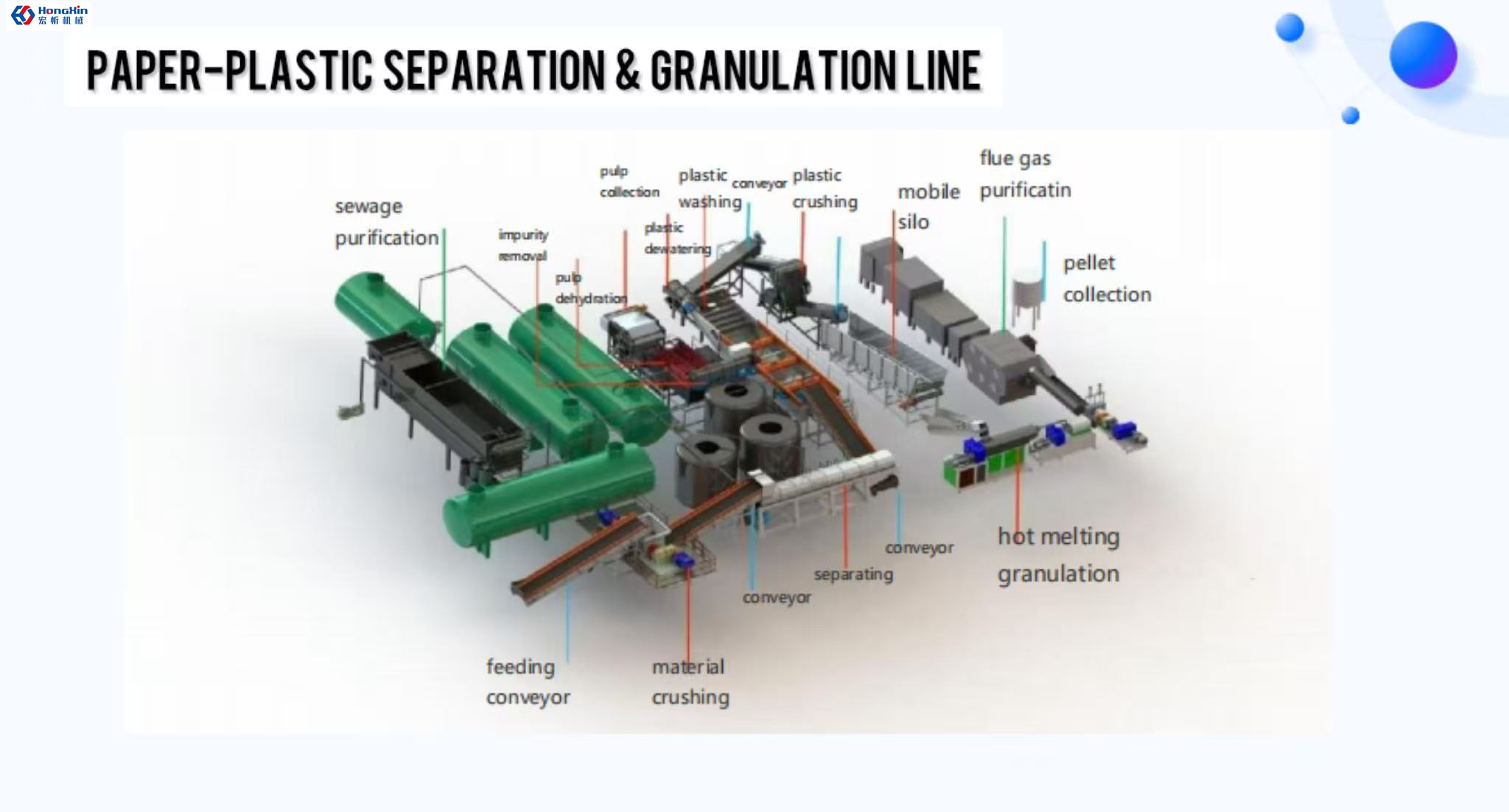

An Integrated Recycling-Line Arrangement
Hongxin can plan a connected equipment layout from material input through separation and recovered-output handling. Supporting equipment is selected according to factory space, material characteristics and operating requirements.
Optional downstream modules can be incorporated when the project calls for further PE processing.
05 / Optional downstream processing
Plastic Recovery and Downstream Pelletizing
Separated PE plastic can be further processed into recycled PE pellets through an optional downstream pelletizing line.
From Separated PE to Recycled Pellets
The separation stage produces recovered PE. A separate, optional downstream system can prepare the material for pellet production, depending on its condition and the desired pellet specification.
Hongxin has illustrated a 3 tonnes/hour integrated arrangement for this application. This is not a guaranteed throughput for a standalone pelletizer or every feedstock.
Project consultation
Plan Your Paper-Plastic Recycling Project
Tell us your raw material, expected processing capacity and operating hours per day. Send material photos or samples so our team can recommend an appropriate configuration.
